Challenger CL20



Challenger CL20


76.6" Rise Height, 166.75" Overall Width

20,000 lb. Capacity

1’ and 2’ Column Extensions Available

Challenger’s Heavy-Duty 2-Post lifts boast optimum flexibility with a lift designed from the anchors up to meet ALI/ANSI safety standards. These lifts have a capacity of 16,000lbs or 20,000lbs and can lift everything from compact cars to tall, heavy trucks. All put together, this lift is built to withstand the toughest of fleet maintenance.

Request More Info

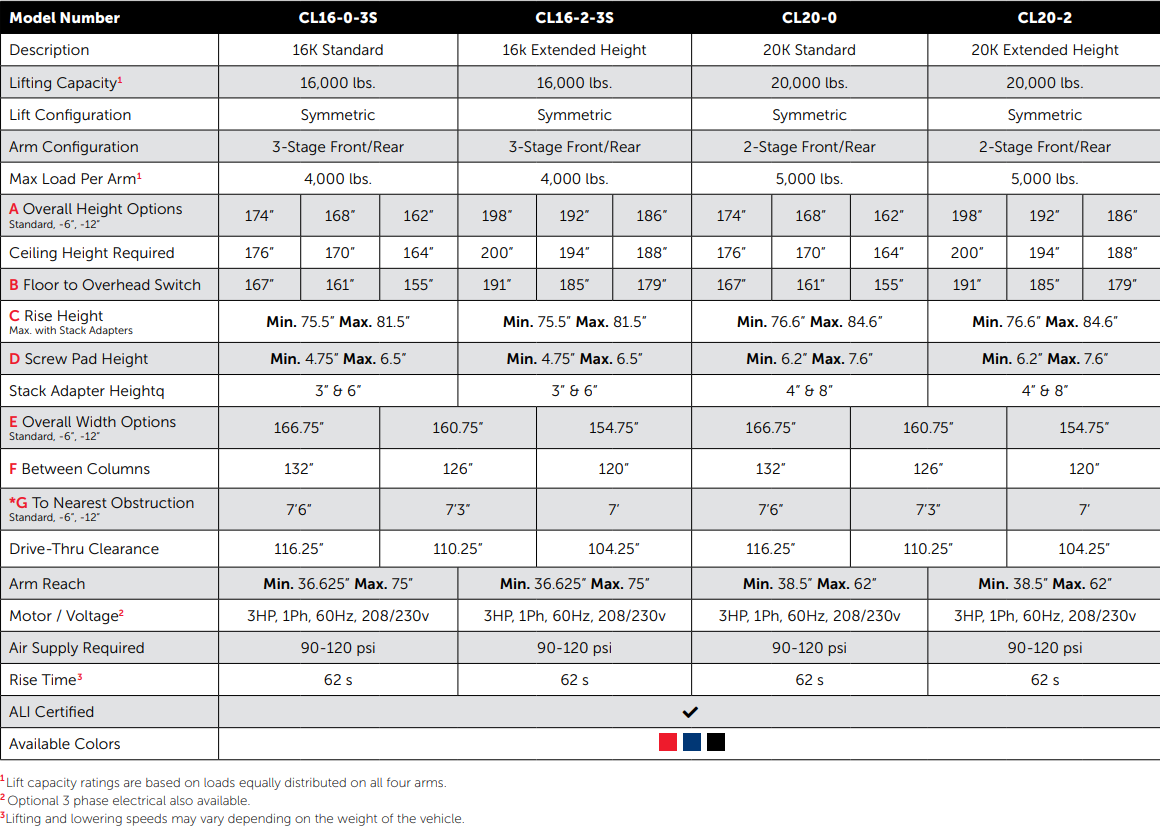

CL20 Overview



Features & Benefits


Exclusive Features

- Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously.

Durability

- Oversized 5” diameter steel pulley and heavy duty 3/8” cable reduces stress on equalization system and increases cable life.

- 60” lifting carriage design increases lift life.

- Dual integrated rubber door guards to prevent door damage.

Features & Benefits Cont.


Reliable

- Innovative synchronizer cable system easily adjusts to any of the three lift height options without extra parts or making the cable connection inaccessible.
- Heavy-Duty rubber screw pads accommodate a wide range of recommended vehicle lifting points.

Euro-Style Cargo Van Model Available*

- Premium 15,000 lb. professional-grade 2-post lift with 2-stage front and rear arms.
- Industry-only 3-stage front/ rear arms, low-profile adapter to accommodate Euro-style cargo vans.*

- Premium 18,000 lb. professional-grade 2-post lift with 2-stage front and rear arms.


Lift Compatible Accessories

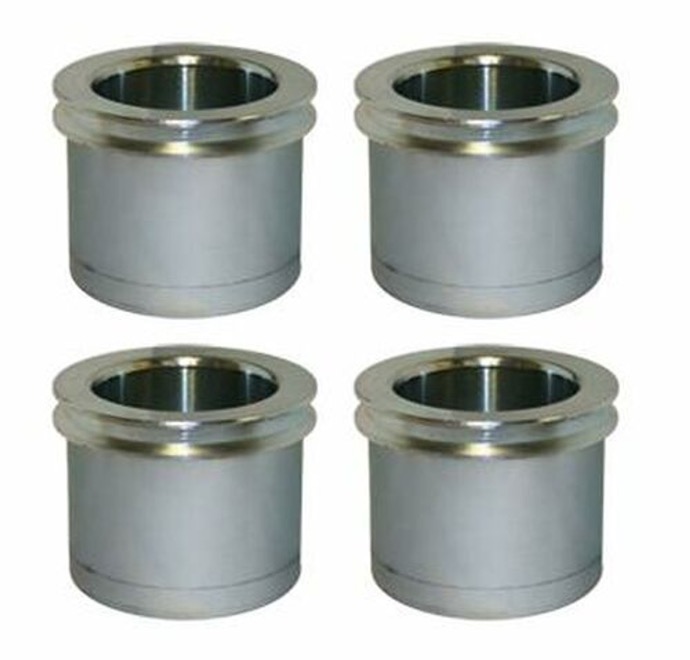

Reducer (Part #10317)

Reducer bushing for use with 10318 (set of 4) for lift models 15000 and 18000.

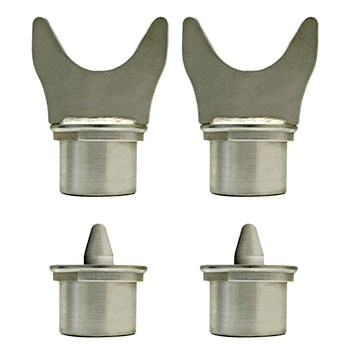

Sprinter Kit (Part #10333)

Sprinter kit including pair of cradle adapters and pair of pin adapters.

*Compatible only with the 15000-3S series*

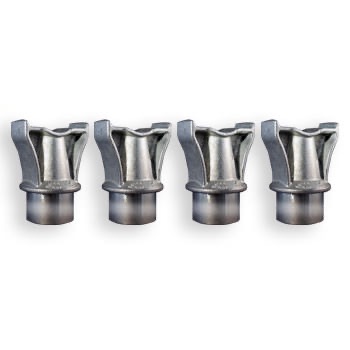

Truck Adapters (Part #10318)

Set of four frame-engaging truck lift adapters.
