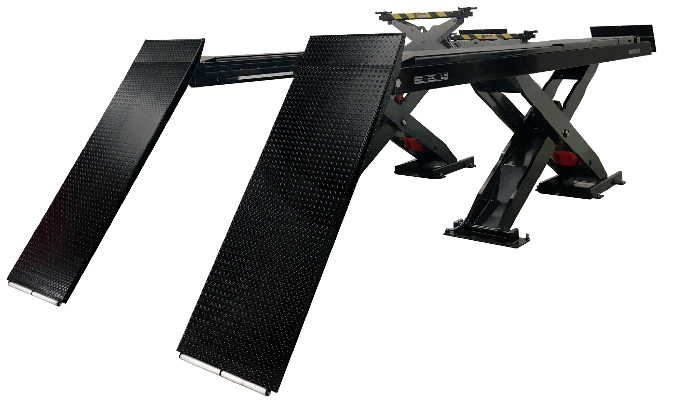

Challenger SX14

Challenger SX14 series scissor lifts are easy to operate and load. Adjustable turn plates allow for a wider range of wheelbase alignments. The SX14 features LED lighting, single locking point rear slip plates, photo cell to ensure runway synchronization and optional extended ramps that accommodate low-clearance vehicles. These alignment racks are available in flush or surface-mounted models. Kit includes the lift, two rolling jacks, adjustable turn plates, and an airline kit for dual jack operation.

Rise Height: 77" Overall Width: 91.25" Overall Length: 265" 14,000lbs Capacity Max Wheelbase: 183"


Request More Info

FEATURES:

  • Package includes two (2) rolling jacks, turn plates, and an airline kit for dual jack operation, extra wide runway width accommodates single and dual rear wheel vehicles.

  • Photo cell ensures runway synchronization and automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”.

  • Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue.

  • Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris.

LIFT COMPATIBLE ACCESSORIES:

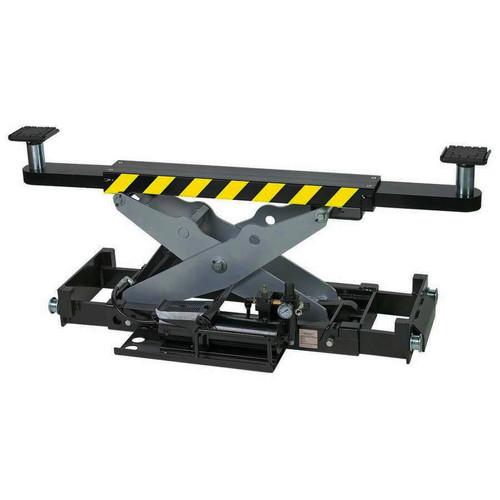

Rolling Jacks (Included)

Air/Hydraulic Rolling Jack

Part #RJ7

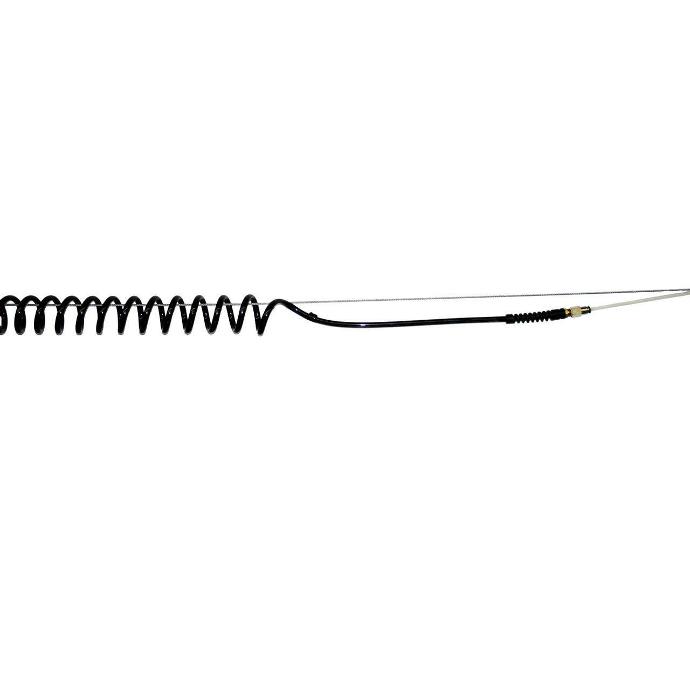

Air Line Kit (Included)

Internal air line kit for dual rolling jack operation.

Part# 40230E
